Assembly

All of our products are designed to be quick to deploy for just one or two people.

0.5m High Floodstop Barrier
FLOODSTOP barrier assembly:
  • Inspect ground conditions and clear any debris
  • Position the Floodstop Modular Units out in a linear position for the chosen barrier length
  • Fully insert connection keys
  • Apply the required curvature to the barrier
  • Pre-fill every 3rd modular unit (with water ballast) along the assembled flood barrier. The remaining units (with semi-circular front facing holes) will automatically fill with the rising flood waters
Connecting the barrier to a wall:
  • Connect the Multi-hub pod to end of the assembled FLOODSTOP flood barrier
  • Rotate the ‘cam-like’ unit into the in-situ object (typically a wall) ensuring the side gasket is placed under pressure
  • Fill the pod with water ballast
0.9m High Floodstop Barrier
FLOODSTOP barrier assembly:
  • Inspect ground conditions and clear any debris
  • Position the 0.9m high Floodstop Modular Units out in a linear position for the chosen barrier length
  • Fully insert the lower and upper connection keys
  • Apply the required curvature to the barrier
  • Pre-fill every 3rd modular unit (with water ballast) along the assembled flood barrier. The remaining units (with semi-circular front facing holes) will automatically fill with the rising flood waters
Connecting the barrier to a wall:
  • Connect the 0.9m high Multi-hub unit to end of the assembled FLOODSTOP flood barrier
  • Rotate the ‘cam-like’ unit into the in-situ object (typically a wall) ensuring the side gasket is placed under pressure
  • Fill the pod with water ballast

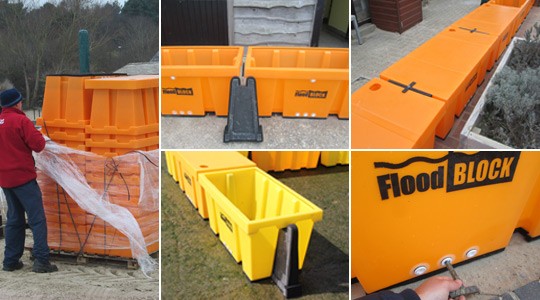

0.5m High FloodBlock Barrier
FloodBlock barrier assembly:
  • Inspect ground conditions and clear any debris
  • Position the FloodBlock Modular Units out into required barrier length and direction
  • Insert connection keys and fix anti-vandal brackets
  • Pre-fill a minimum of every 3rd modular unit (with water ballast) along the assembled flood barrier. The remaining units will automatically fill with the rising
  • flood waters (remove the front face bungs for this)
Connecting the barrier to a wall:
  • Insert a FloodBlock Wall Connector between a modular unit and a wall to create a connection

Components

0.5m High Floodstop Barrier
  • 1-metre long self-filling or pre-filled flood barrier units
  • Standard modular unit dimensions: 1000 (L) x 500 (H) x 500mm (D)
  • Modular Unit Weight: 10kg
  • Any colour can be requested. The colours red and white is standard
  • Allowing wall connection or acute cornering.
  • Standard unit dimensions: 360 (L) x 500 (H) x 590mm (D)
  • Modular Unit Weight: 5kg
  • Any colour can be requested. The colour white is standard
  • Interlocking key that creates a seal and applied ballast between Modular and Multi-hub units
  • Universal Key Weight: 18kg
0.9m High Floodstop Barrier
  • 1-metre long self-filling or pre-filled flood barrier units
  • Standard modular unit dimensions: 1000 (L) x 900 (H) x 750mm (D)
  • Modular Unit Weight: 26kg
  • Any colour can be requested. The colours red and white is standard
  • Allowing wall connection or acute cornering
  • Standard unit dimensions: 400 (L) x 900 (H) x 740mm (D)
  • Modular Unit Weight: 16kg
  • Any colour can be requested. The colour white is standard
  • Interlocking key that creates a seal and applied ballast between Modular and Multi-hub units
  • This component is made up of two easily manageable parts, an Upper Key (approx 20kg) and Lower Key (approx 15kg)
0.5m High FloodBlock Barrier
  • 1-metre long self-filling or pre-filled flood barrier units
  • Standard modular unit dimensions: 1000 (L) x 500 (H) x 500mm (D)
  • Modular Unit Weight: 13kg
  • Any colour can be requested. The colour orange is standard
  • Interlocking key that allows connection to a wall or similar in-situ object
  • FloodBlock™ Wall Connector Weight: 5kg
  • Interlocking key that creates a seal and applies ballast between the FloodBlock™ modular units
  • The Key can be connected into any of the four sides of the unit. This allows any angle to be met
  • FloodBlock™ Key Weight: 10kg
